fake

Configure a fake gripper to test implementing a gripper on your machine without any physical hardware:

{
  "name": "<your-fake-gripper-name>",
  "model": "fake",
  "api": "rdk:component:gripper",
  "attributes": {}
}

No attributes are available for fake grippers. See GitHub for API call return specifications.

Configure physical properties through the frame

The fake gripper has no attribute for length or collision volume. The motion planner reads both from the component’s frame field. Set frame.translation.z to the offset from the arm’s tool flange to the tool center point (TCP) you want the planner to drive to, and frame.geometry to the collision shape.

For a typical 120 mm parallel-jaw gripper bolted directly to the arm flange:

{
  "name": "my-fake-gripper",
  "model": "fake",
  "api": "rdk:component:gripper",
  "attributes": {},
  "frame": {
    "parent": "my-arm",
    "translation": { "x": 0, "y": 0, "z": 120 },
    "orientation": {
      "type": "ov_degrees",
      "value": { "x": 0, "y": 0, "z": 1, "th": 0 }
    },
    "geometry": {
      "type": "box",
      "x": 80,
      "y": 80,
      "z": 120,
      "translation": { "x": 0, "y": 0, "z": -60 }
    }
  }
}

frame.translation.z: 120 puts the frame origin at the TCP, 120 mm out from the arm flange. geometry.translation.z: -60 sits the box’s center halfway back toward the flange, so the box covers the gripper body from the flange to the TCP.

Why this matters: motion planning, reachability checks, and approach and retract poses all drive the TCP, not the tool flange, to a target pose. With no frame, the planner has no TCP defined and treats the gripper as a zero-volume point at the flange.

Symptoms if wrong: motion plans validate, then the physical gripper tip lands short or long of the target, or the planner returns “outside workspace” for poses the arm can clearly reach.

For the broader pattern and worked examples for cameras and IMUs, see When the model has no physical-extent attribute.

Test the gripper

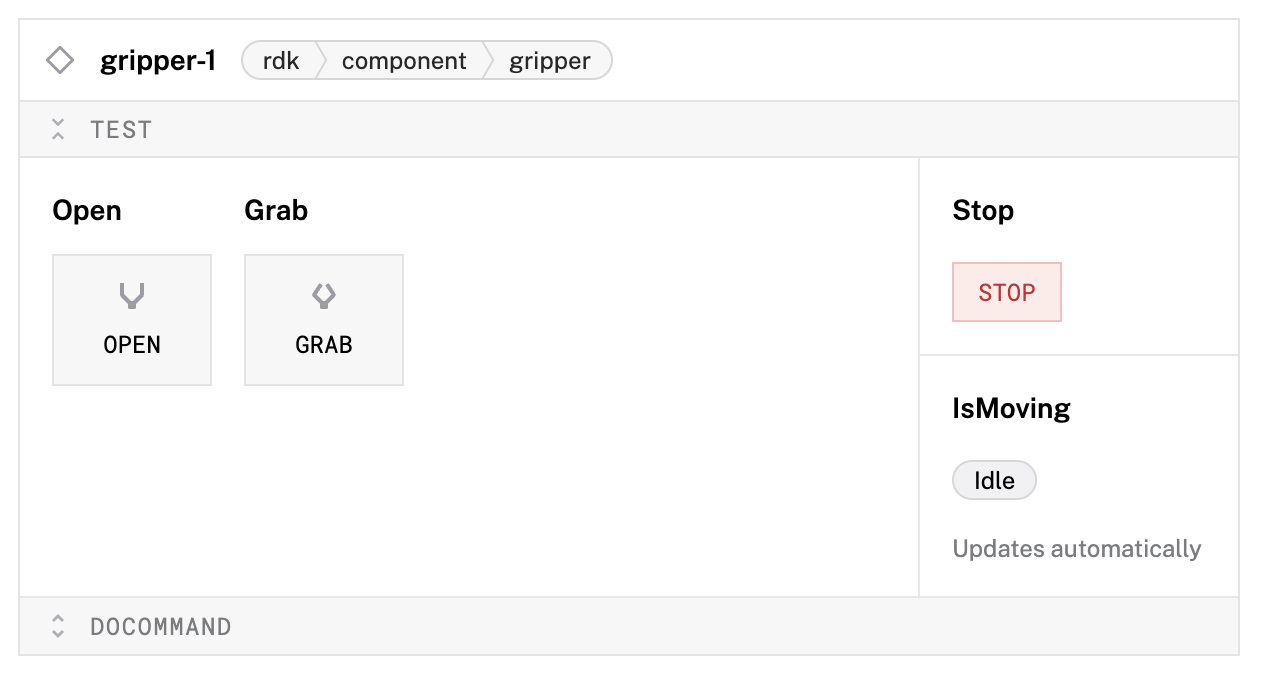

After you configure your gripper, open the gripper’s TEST panel on the CONFIGURE or CONTROL tabs. Use the buttons to open and close the gripper.
